Mr. TúDescription
NSD single turn absolute position sensor named VRE ABSOCODER is an electro-mechanical sensor that measures the angular position under magnetic reluctance change. True heavy duty VRE series has been proven its excellent performance and durability at actual production field under high shock, high temperature and high speed vibration.
Model coding
| ①Sensor model | ②Phase type | ③Mounting | ④Input shaft | ⑤Connector type | ⑥Interconnecting sensor cable (m) |
⑦Silicon oil injected | |
|---|---|---|---|---|---|---|---|
| VRE | P | 061 | F | K | B | - | - |
| P | 074 | F | K | B | 2 | -G | |
| P | 101 | F | K | B | 2 | -G | |
| 16TS | 100 | F | K | B | 2 | -G | |
| 10TP | 068 | F | K | B | 2 | - | |
| 10TP | 101 | F | K | B | 2 | -G | |
image select the required specification.
①Sensor model
VRE[Single-turn type]
②Phase type
P[Standard type] 16TS[High-resolution type] 10TP[ABSO PULPUL®-only]
③Mounting
F[Fiange-mount type] L[Base-mount type] M[Face-mount (Only by 068,074)]
④Input shaft
K[Sunk key]
⑤Connector type
- B[Standard connector for NSD standard cable]
- R[Terminals for commercially available cable and NSD standard cable]
⑥Interconnecting sensor cable (m)
2[2m] 5[5m] 10[10m] 15[15m] 20[20m] VRE-□SP061:only by 2m
⑦Silicon oil injected
G[Silicon oil injected] Blank[None]
![Mounting : F[Fiange-mount type] L[Base-mount type] M[Face-mount type],Input shaft : K[Sunk key], Connector type : B[Standard connector] R[Crimp-type terminal]](https://www.nsdcorp.com/product/one_turn_sensor/vre_resistant/images/image02a.gif)

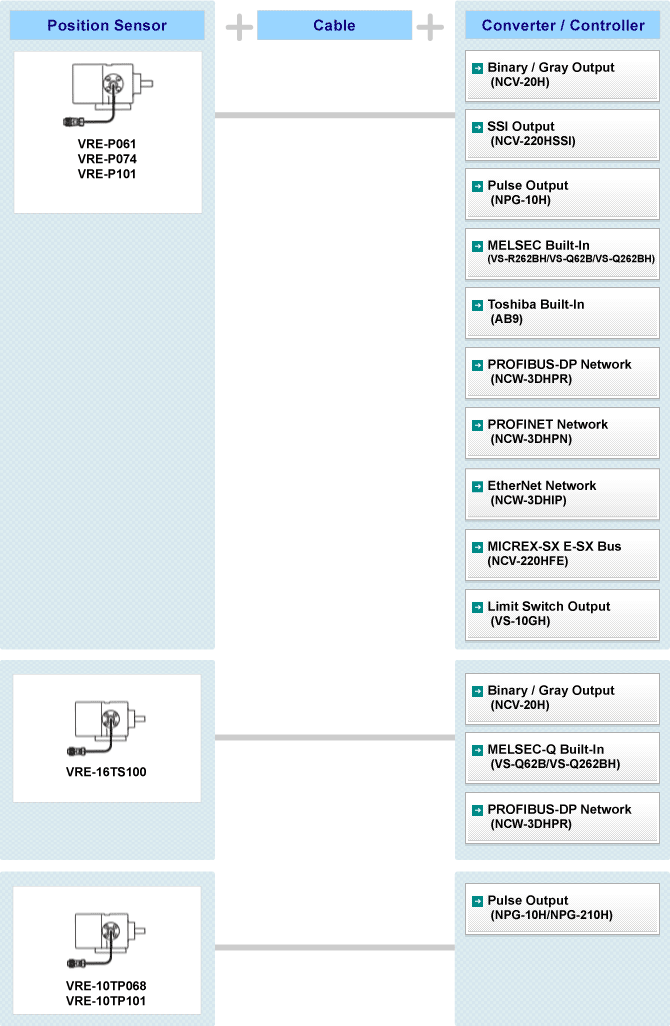

System Configuration
