NSD linear absolute position sensor VLS ABSOCODER is an electro-mechanical sensor that measures the linear travel length and amount under magnetic reluctance change. ABSOCODER's outstanding durability with field proven performance is achieved by a creative construction of the design which eliminates mechanical contact parts and satisfies zero-electronics inside sensor.
Model coding
| Type | List of sensor model | Absolute detection range (UNIT:mm) |
Type | Max. detection stroke (UNIT:mm) |
Code |
|---|---|---|---|---|---|
| Absolute & dual-rod type |
VLS-256PWB VLS-256PW58B VLS-256PW100B VLS-256PW128B VLS-256PW200B |
256 | PW | 58, 100, 128, 200, 256 | B |
| VLS-512PWB VLS-512PW200B VLS-512PW220B VLS-512PW350B VLS-512PW400B |
512 | 200, 220, 350, 400, 512 | |||
| VLS-1024PW VLS-1024PW600 VLS-1024PW800 |
1024 | 600, 800, 1024 | - |

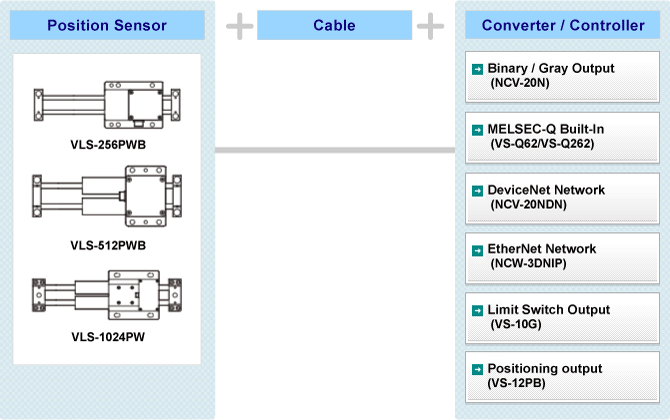

System Configuration
Specification
| Item | Specification | |||
|---|---|---|---|---|
| Sensor model | VLS- 256PWB |
VLS- 512PWB |
VLS- 1024PW |
|
| Absolute detection range | 256 | 512 | 1024 | |
| Resolution(mm) | 0.00391 | 0.00781 | 0.0156 | |
| Mass(kg) | 0.9 | 1.7 | 8 | |
| Linearity error(mm) | 0.05 Max. | 0.1 Max. | 0.4 Max. | |
| Spring constant(N/mm{kgf/mm}) | - | - | - | |
| Sliding resistance(N {kgf}) | 4.9{0.5} or less | 7.8{0.8} or less | 19.6{2} or less | |
| Permissible mechanical speed(mm/s) | 1000 | 1000 | 2000 | |
| Ambient temperature | Operating | -20 ～ +60 | ||
| Storage | -30 ～ +90 | |||
| Vibration resistance | 110m/s2 {11.3G} 66.7Hz Up/down 4h,forward/back/left/right each 2h. Conforms to JIS D 1601 standard. | |||
| Shock resistance | 2000m/s2 {200G} up/down ×3 times respectively.Conforms to JIS D 5026 standard. |
|||
| Protection rating | IP40 (JEM1030) | |||
| Max. sensor cable length | Standard cable (m) | 100 | ||
| Robotic cable (m) | 50 | |||
Resolution
Resolutions of the sensor are different depending on which converter or controller is being used together.Please check the resolutions per turn by specifications of the converter or controller that you plan to use.
